Lowrance Elite FS 9" TotalScan Black Edition
Lowrance Elite FS 9 TotalScan Black Edition – 9" Fish Finder & Chartplotter
Manufacturer part number: 000-16351-001 | Region: ROW (Rest of World) | Bundle: Elite FS 9 display with TotalScan transducer

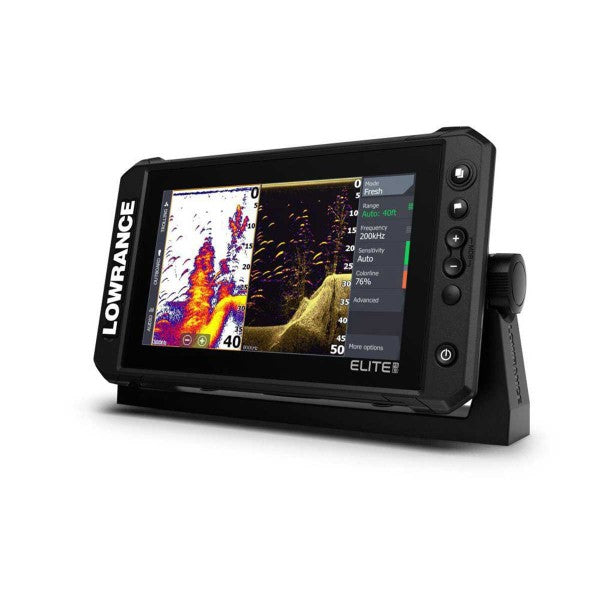

The Lowrance Elite FS 9 Black Edition combines a bright 9-inch multi-touch display, advanced sonar, GPS chartplotting and expandable marine networking. This specific package includes a TotalScan transducer for conventional CHIRP sonar, DownScan Imaging and side-looking StructureScan imaging. It is not the similarly named Active Imaging 3-in-1 bundle.
Key benefits
- 9-inch IPS touchscreen: 800 × 480 pixel display with brightness above 1,200 nits, plus dedicated hardware keys.

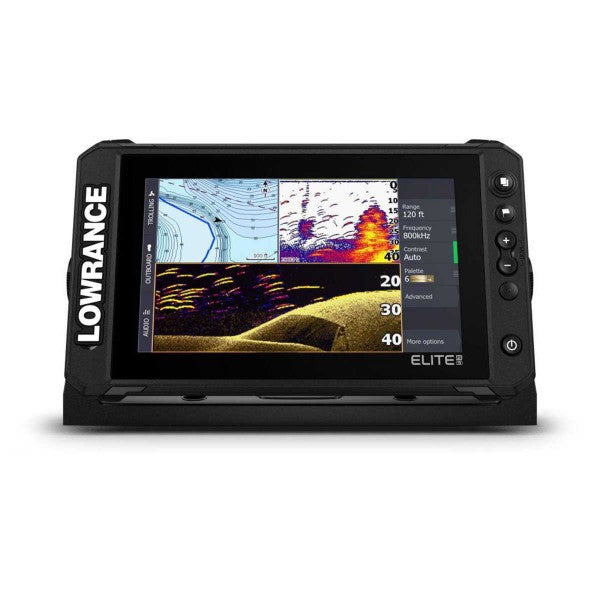

- Three complementary sonar views: conventional sonar to locate fish, DownScan to distinguish structure beneath the hull, and side imaging to explore structure on both sides of the boat.
- TotalScan included: 83/200 kHz conventional broadband sonar, Medium/High CHIRP and 455/800 kHz structure imaging capability.
- Navigation: integrated 10 Hz GPS, waypoint and route management, compatible C-MAP and Navionics mapping options and Genesis Live mapping.
- Expandable system: Ethernet, NMEA 2000, Wi-Fi and Bluetooth connectivity for compatible accessories and marine equipment.
Sonar and imaging explained
CHIRP / conventional sonar: useful for following depth changes, distinguishing fish targets and reading bottom returns. Supported frequencies depend on the connected transducer. The included TotalScan supports 83/200 kHz and Medium/High CHIRP.
DownScan Imaging: provides a detailed, downward-looking representation of submerged structure beneath the boat, helping differentiate cover from the surrounding bottom.
StructureScan / side imaging: uses 455/800 kHz structural imaging to search to port and starboard, particularly useful around ledges, drop-offs, vegetation and underwater obstacles. Actual imaging range and definition depend on conditions and installation.
FishReveal: combines fish-target information with DownScan views on compatible Elite FS sonar configurations.
GPS, charts and navigation
The integrated 10 Hz GPS enables position tracking, navigation to saved waypoints, routes and trails. Elite FS supports compatible C-MAP and Navionics mapping products and Genesis Live contour creation. Map cards, detailed chart coverage and subscriptions are not stated as included in this SKU unless separately confirmed. Routing functions depend on the installed compatible cartography.
Networking and compatible expansions
The unit provides one 100 Mbit Ethernet connection, one NMEA 2000 Micro-C connection, integrated 802.11 b/g/n wireless and Bluetooth 4.0. Compatible optional systems may include ActiveTarget 2 live sonar, networked electronics and selected Lowrance trolling-motor integrations. ActiveTarget transducer/module, S3100 module, radar and other expansion hardware are not included in this bundle. Active Imaging HD modes require compatible additional equipment and should not be confused with the capabilities of the included TotalScan.
Technical specifications
| Product | Lowrance Elite FS 9 Black Edition with TotalScan |
|---|---|
| Manufacturer SKU | 000-16351-001 |
| Display | 9-inch IPS multi-touch screen |
| Resolution | 800 × 480 pixels |
| Brightness | More than 1,200 nits |
| Viewing angles | 50° top, 60° bottom, 70° left/right |
| GPS | Integrated 10 Hz GPS receiver |
| Included transducer technology | TotalScan: Broadband, CHIRP, DownScan Imaging, StructureScan HD |
| TotalScan sonar frequencies | 83/200 kHz; Medium/High CHIRP |
| TotalScan structure imaging | 455/800 kHz |
| Ethernet | 1 × 100 Mbit port (5-pin) |
| NMEA 2000 | 1 × Micro-C port |
| Wireless | Wi-Fi 802.11 b/g/n; Bluetooth 4.0 |
| Memory card | 1 × microSD slot |
| Power supply | 12 V DC (10–17 V DC permitted) |
| Maximum power consumption | 28 W (approximately 2 A at 13.8 V DC) |
| Recommended fuse | 3 A |
| Water resistance | IPX6 / IPX7 per Elite FS installation documentation |
| Operating temperature | −15°C to +55°C |
| Display weight | Approximately 1.2 kg (9-inch model) |
What's in the box
- Lowrance Elite FS 9 Black Edition display

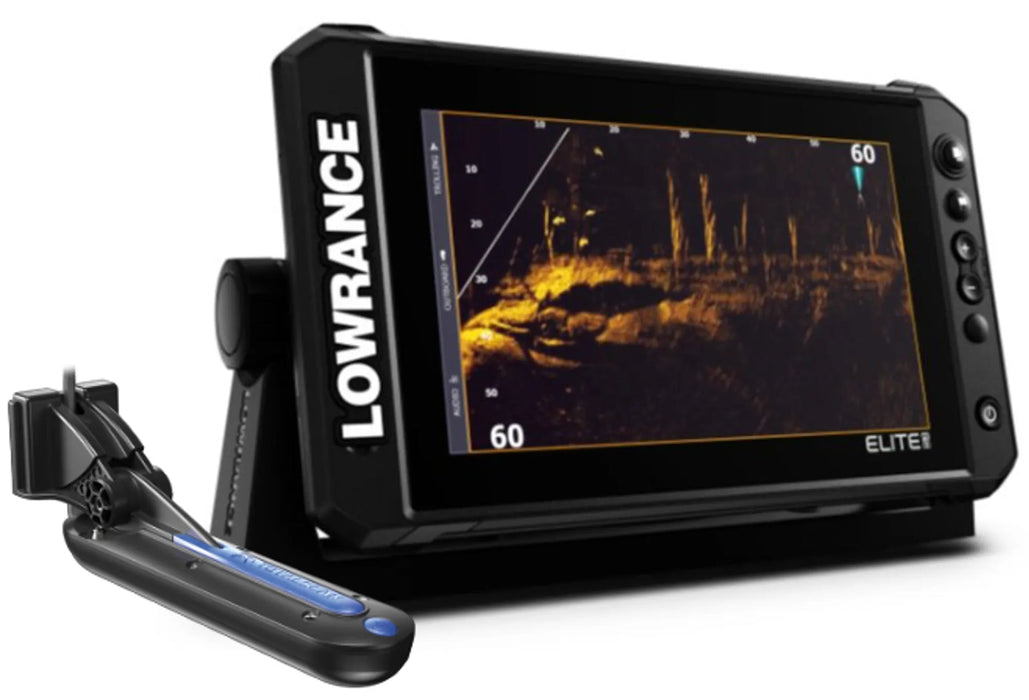

- TotalScan transducer
- Gimbal mounting bracket and knobs
- Display sun cover
- Power cable
- Product documentation (format may vary)
Bundle contents are cross-checked against listings for manufacturer SKU 000-16351-001 and the Elite FS installation guide; exact small accessories and regional packaging can vary. Please contact us if a specific fitting or cable is essential for your installation.
Installation notes
Use a suitable 12 V DC power supply with a properly rated fuse. Correct transducer location, alignment and mounting height are important for accurate readings. The rear connectors provide dedicated connections for power, sonar, NMEA 2000 and Ethernet. Refer to the official installation guide before drilling, wiring or mounting.
Documents and official references
- Lowrance – Elite FS technical specifications
- Lowrance – TotalScan transducer technology
- Lowrance – Elite FS manuals, mounting template and quick-start resources
Frequently asked questions
Does this package include a transducer?
Yes. The SKU 000-16351-001 Black Edition bundle is listed with a TotalScan transducer.
Is TotalScan the same as Active Imaging 3-in-1?
No. These are different transducer products and configurations. This listing is for the TotalScan version.
Does it include ActiveTarget 2 live sonar?
No. Elite FS is compatible with supported ActiveTarget 2 equipment, purchased separately.
Are detailed maps included?
Specific preloaded charts or additional mapping cards have not been independently confirmed for this ROW bundle; confirm chart requirements before purchase.
