LiFePO4 Charger Rebelcell 14.6V20A — 20A, IP65
LiFePO4 Charger Rebelcell 14.6V20A — 20A, IP65
An automatic 14.6V 20A charger for compatible 12V-class LiFePO4 batteries. The sealed IP65 construction and bolted M8 charging leads suit a fixed marine charging installation, provided the unit has adequate ventilation.
Technical specifications
| Battery chemistry | LiFePO4 |
|---|---|
| DC charging output | 14.6V / 20A |
| AC supply | 230V AC, 50–60Hz |
| Charging sequence | Pre-charge, constant current, constant voltage and cut-off |
| Minimum detected battery voltage | 3V |
| Efficiency | Greater than 91% |
| Connections | M8 ring terminals |
| Dimensions / weight | 230 × 135 × 80 mm / 2.6 kg |
| Enclosure rating | IP65; epoxy-sealed electronics |
| Cooling | Fan and heat-dissipating housing |
| Ambient operating temperature | −10 to +40°C |

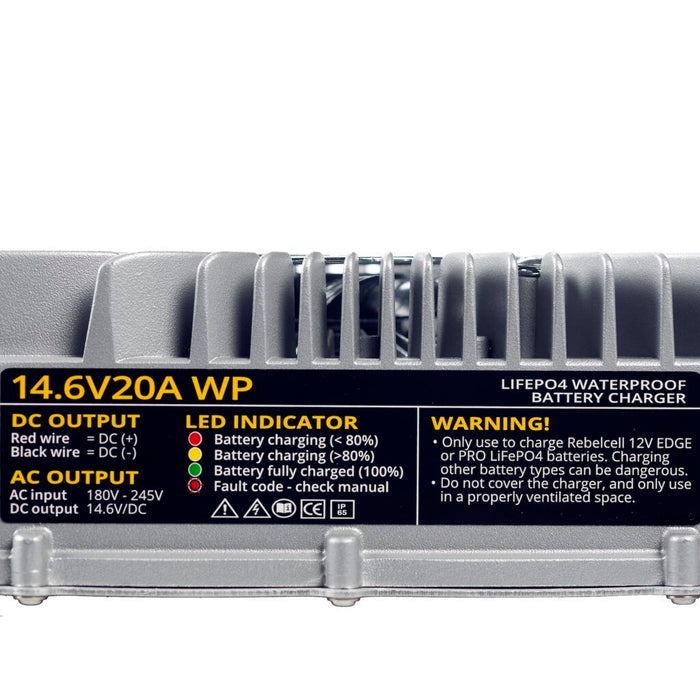

| Status indication | Red: below 80%; yellow: above 80%; green: full |
| Product code | WC14V20REPR |
Features and practical use
- Automatic charging control stops charging at completion.
- Protection against reverse polarity, short circuit, overvoltage, overheating and overcharging.
- Compatible product families include Rebelcell 12V EDGE 75/105/210 and PRO 80/120, subject to each battery's permitted charging current.
- Indicative charging times: 75/80Ah: approximately 4–5 h; 105Ah: approximately 6–7 h; 120Ah: approximately 7–8 h; 210Ah: approximately 11–12 h. Times depend on initial charge and battery conditions.
Compatibility and installation
Use only with batteries that explicitly accept a 14.6V LiFePO4 charging profile and at least 20A charging current.
Not for Rebelcell 12.6V lithium-ion AV batteries or a 24V battery bank.
IP65 does not permit immersion. Mount with ventilation, keep fan openings clear and follow the charging instructions for permanent installations.
What's included
Charger with M8 battery connection leads. Battery sold separately.
