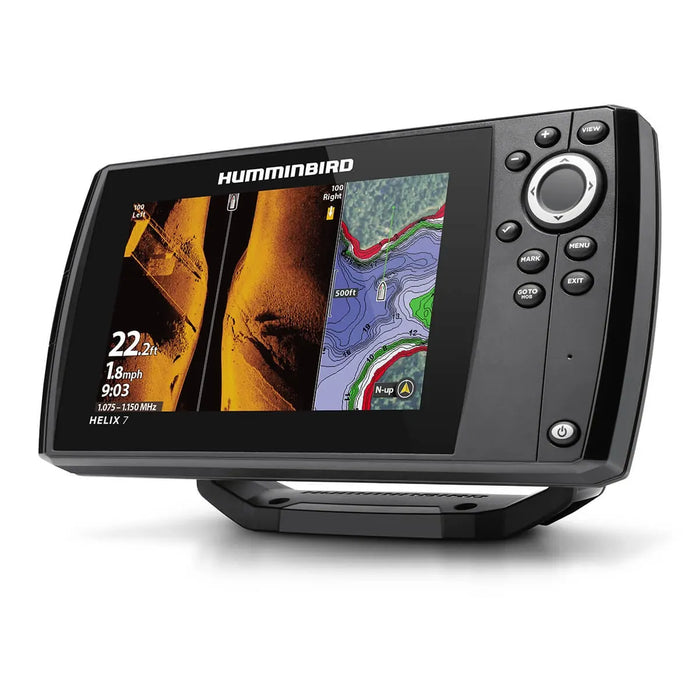

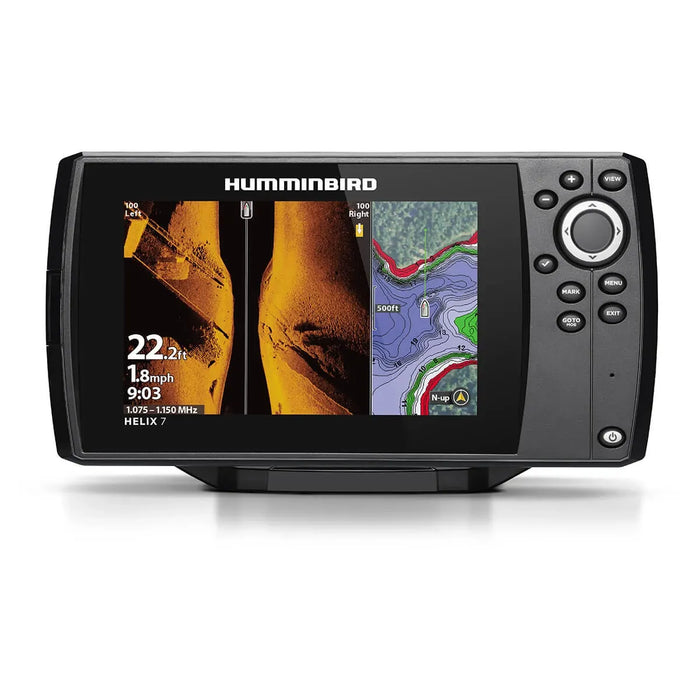

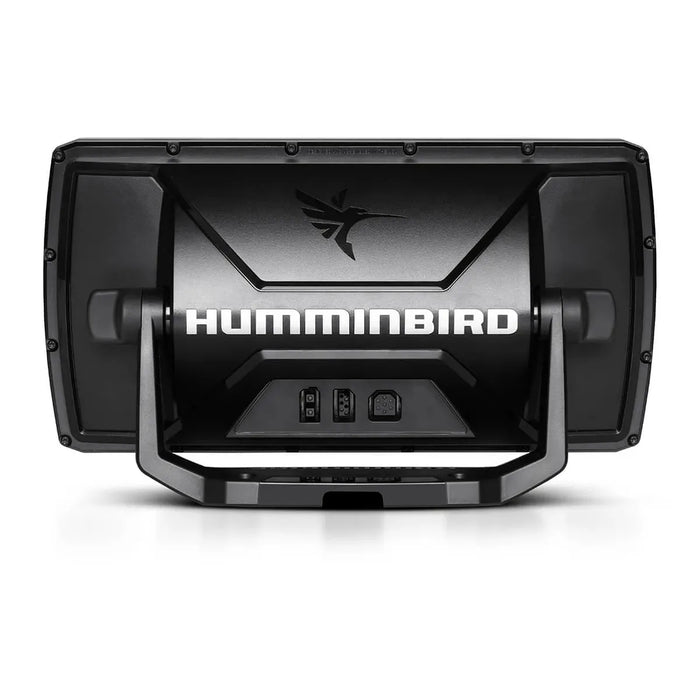

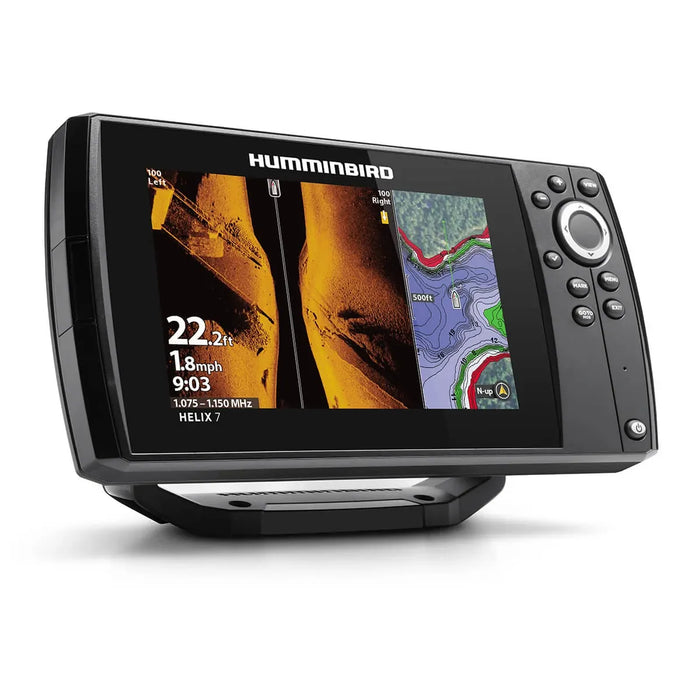

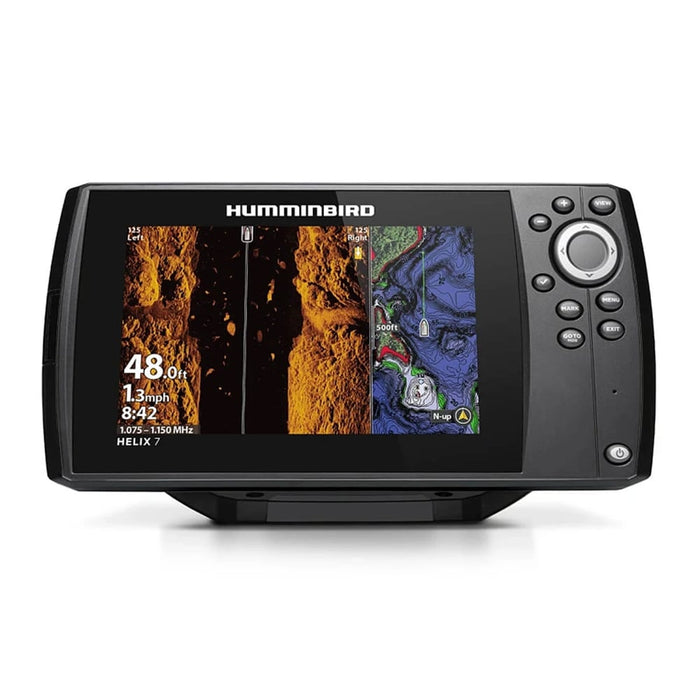

The HELIX 7 MEGA SI GPS G4 combines traditional CHIRP sonar, detailed side and down imaging, GPS navigation and on-water contour mapping in a keypad-operated 7-inch unit. Use split-screen views to compare fish arches, structure and chart position while keeping frequently used controls accessible.
Technical specifications
| Display | 7-inch colour TFT, 1024 × 600 pixels, 16-bit colour |
|---|---|
| Control | Keypad and X-Press menu |
| Included transducer | XNT 9 HW MSI 150 T; transom mounting |
| Sonar systems | Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging |
| 2D coverage angles | 20°, 42°, 60° and two 86° beams at −10 dB |
| Supported sonar frequencies | 50 / 83 / 200 / 455 / 800 kHz and 1.2 MHz |
| CHIRP 83/200 bands | 75–155 / 130–250 kHz |
| Dual Spectrum modes | Full: 150–220 kHz; Narrow: 180–240 kHz; Wide: 140–200 kHz |
| Imaging CHIRP bands | 455 kHz mode: 440–500 kHz; MEGA DI/SI: 1075–1150 kHz |
| 2D depth rating | 1200 ft / 365.8 m with standard transducer; 3500 ft / 1066.8 m with optional 50 kHz transducer |
| Down Imaging depth rating | 455 kHz: 400 ft / 121.9 m; MEGA: 75 ft / 22.9 m, per specification table |
| Side Imaging total coverage | MEGA: 250 ft / 76.2 m; 455 kHz: 800 ft / 243.8 m, side-to-side |
| Target separation | 2.5 in / 6.35 cm |
| Interference / noise control | 6 interference modes / 6 noise-rejection steps |
| GPS | Internal receiver; chartplotting and trackplotting |
| Navigation memory | 2750 waypoints; 47 routes; 50 tracks / 20,000 points |
| Temperature / speed | Built-in temperature, temperature alarm and graph; speed display |
| Recording | Sonar recording and screen snapshots |
| AutoChart Live | Depth, bottom hardness and vegetation mapping; 8 hours built-in recording |
| Card slot | One microSD slot |
| Supply voltage / current | 10.8–20V DC / 800 mA |
| Sonar output | 500W RMS; 4000W peak-to-peak |
| Head dimensions | 26.77 × 13.82 × 7.77 cm (W × H × D) |
| Standard gimbal installation envelope | 10.54 × 5.8 × 3.68 in (W × H × D) |
| Optional in-dash installation envelope | 10.54 × 5.44 × 1.13 in (W × H × D) |
| Head weight | 952.54 g |
| Software | Updatable |
| Product code | 411930-1 |
Features and practical use
- Wide and Narrow CHIRP modes let you prioritise search coverage or more focused target detail.
- MEGA Side Imaging searches both sides of the boat; MEGA Down Imaging concentrates on structure beneath the hull.
- AutoChart Live creates contours as you travel. An optional AutoChart Zero Line card extends recording capacity.
- Supports compatible LakeMaster, CoastMaster and Navionics charts, including supported Platinum+ content.
Compatibility and installation
The built-in Humminbird Basemap covers US lakes/coasts. Regional European charts are optional and must be selected for this unit.
This G4 model is not the G4N network model: NMEA 2000, the Ethernet switch, MEGA Live, 360 Imaging, radar, i-Pilot Link and Talon integration are not supported.
AIS, autopilot and external heading/GPS compatibility depend on the appropriate accessories and interfaces.
Depth and imaging coverage are manufacturer ratings, affected by water conditions, bottom type, installation and settings; the optional 50 kHz depth rating requires an additional transducer.
What's included
Control head, XNT 9 HW MSI 150 T transom transducer, power cable, gimbal mounting bracket and mounting hardware.
