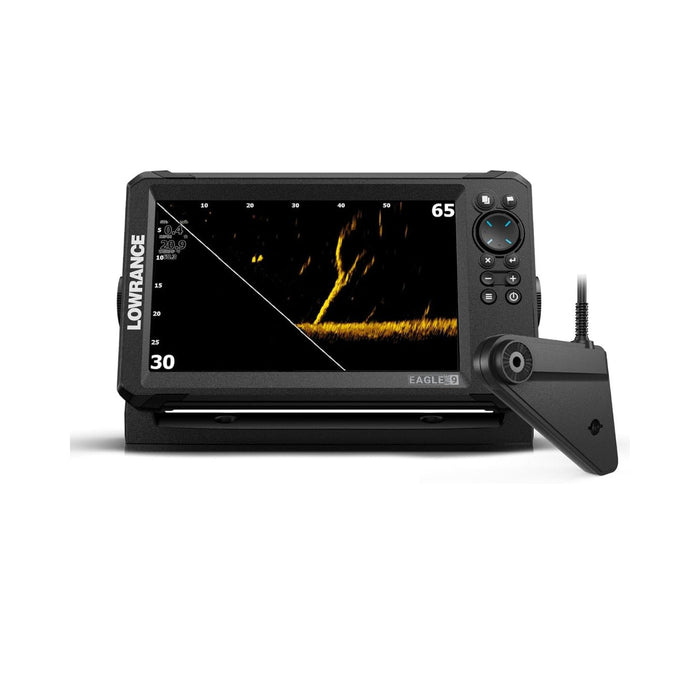

Lowrance Eagle Eye 9" Live Sonar
Lowrance Eagle Eye 9 Live — 9-inch Fish Finder with Live Sonar
Manufacturer SKU: 000-16130-001 | Package: 9-inch Eagle Eye display and Eagle Eye transducer | Region: ROW | Chart: Preloaded worldwide basemap.
What makes Eagle Eye different?
Lowrance Eagle Eye puts real-time forward-looking and downward-looking sonar into a convenient, integrated fishfinding system. Unlike modular live-sonar arrangements that require a separate black-box unit, Eagle Eye provides four complementary fishfinding views from its supplied transducer without a separate live-sonar module. It is designed for anglers who want to see fish and lure movement in real time, investigate bottom features and navigate between saved fishing locations.
Four sonar views from one transducer
- Live Forward: observe fish and lure movement in front of the boat to plan casts and assess target behavior.
- Live Down: see fish and structure in real time under the boat, especially useful when fishing vertically.
- CHIRP sonar: conventional sonar for fish-target interpretation, depth tracking and bottom composition clues.
- DownScan Imaging with FishReveal: combine structure detail beneath the boat with highlighted fish targets.
Live sonar is integrated into the Eagle Eye package, so a separate ActiveTarget 2 module is not required. However, Eagle Eye's focused forward and down views are not equivalent to purchasing an ActiveTarget 2 system; operation, viewing modes and expansion possibilities differ. The integrated transducer is specifically designed for Eagle Eye.
Screen and everyday operation
The 9-inch IPS display has a 1024 × 600 pixel resolution and 1,000-nit rated brightness for clear visibility in sunlight and from wide viewing angles. Autotuning live sonar reduces setup time, while the straightforward Eagle user interface is intended to make sonar options accessible without complex configuration.
GPS navigation and chart options
An integrated chartplotter and preloaded worldwide basemap help navigate to fishing marks and saved locations. Optional compatible C-MAP DISCOVER charts provide greater detail; regional Baltic charts are not confirmed as included in this package. Genesis Live mapping is available in supported charting workflows. Check your intended fishing waters and chart compatibility before purchasing upgrades.
Technical specifications
| Product | Lowrance Eagle Eye 9 Live (ROW) |
|---|---|
| Manufacturer SKU | 000-16130-001 |
| Display | 9-inch IPS |
| Resolution | 1024 × 600 pixels |
| Brightness | 1,000 nits |
| Viewing angles | 85° top/bottom, 85° left/right |
| Included transducer | Lowrance Eagle Eye transducer |
| Sonar views | Live Forward, Live Down, CHIRP, DownScan Imaging with FishReveal |
| Separate live sonar module | Not required |
| Included mapping | Worldwide basemap |
| Supported detailed charts | C-MAP DISCOVER (optional) |
| Memory | 1 × microSD slot; maximum 32 GB |
| Power supply | 12 V DC; allowable 10.8–17 V DC |
| Maximum consumption | 650 mA at 12 V with maximum backlight (manufacturer rating) |
| Recommended fuse | 3 A |
| Water resistance | IPX7 when card door is closed |
Included in the package
Lowrance's official in-the-box specifications explicitly list one Eagle Eye transducer for SKU 000-16130-001, in addition to the Eagle Eye display bundle. Confirm mounting, power and cable accessories against the current regional package list before ordering; detailed chart cards and additional electronics are not assumed included.
Installation guidance
Install the dedicated Eagle Eye transducer following its mounting instructions, including required clearance for the forward-looking sonar beam. For reliable live returns, pay attention to orientation, interference and boat movement. Mount the display securely, use the recommended fuse and protect all power connections from moisture.
Questions and compatibility
Do I need an ActiveTarget module? No, Eagle Eye's four sonar views work through the integrated package's dedicated transducer.
Does it provide SideScan? No. Eagle Eye focuses on Live Forward, Live Down, CHIRP and DownScan.
Are detailed Baltic charts supplied? The confirmed map is the worldwide basemap; select suitable regional charts separately.
Is it waterproof? Lowrance specifies IPX7 with the microSD door correctly closed.
Official manufacturer specifications
Lowrance Eagle Eye 9 Live ROW — SKU 000-16130-001 technical specification and contents
