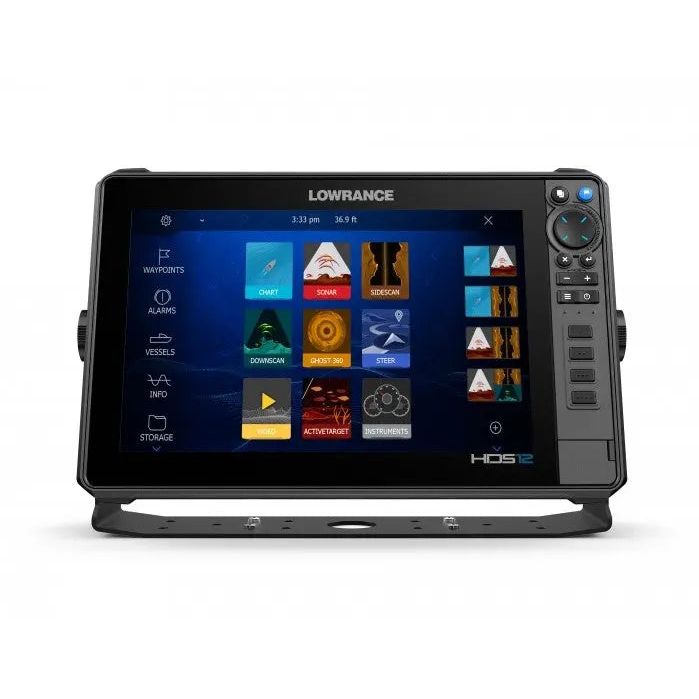

Lowrance HDS PRO 12" with Active Imaging HD 3-in-1
Lowrance HDS PRO 12 with Active Imaging HD 3-in-1 Transducer — ROW
Manufacturer SKU: 000-15988-001. The Lowrance HDS PRO 12 is a premium 12-inch multifunction fishfinder and GPS chartplotter, combining a bright SolarMAX HD touchscreen, advanced sonar imaging, sophisticated C-MAP charting and networking for a complete fishing system. This exact regional package includes an Active Imaging HD 3-in-1 transducer; it should not be confused with a display-only configuration.
Why choose HDS PRO 12?
- Large, readable 12-inch touchscreen: 1280 × 800 resolution, brightness above 1,200 nits and wide viewing angles, including operation through polarized sunglasses.
- Included Active Imaging HD 3-in-1: combine Lowrance CHIRP traditional sonar, DownScan Imaging and SideScan imaging using the supplied transducer.
- High-definition structure views: compatible Active Imaging HD supports higher-frequency imaging up to 1.2 MHz for detailed underwater structure identification.
- FishReveal: combine target information with DownScan; FishReveal on SideScan requires the optional S3100 module and a compatible transducer.
- Live sonar ready: compatible with ActiveTarget 2 live sonar when appropriate optional modules, transducers and software are installed.
- Detailed navigation: supports compatible C-MAP charting and advanced waypoint, route and mapping workflows.
- Connected helm: Ethernet, NMEA 2000, Wi-Fi and Bluetooth integration for compatible marine accessories.
CHIRP sonar and HD imaging
Traditional CHIRP sonar helps distinguish fish returns, monitor bottom contours and track depth changes. Active Imaging HD DownScan provides detailed views directly beneath the vessel, while SideScan explores structure on both sides of the boat. These complementary modes help identify edges, weedlines, rock formations, timber and other likely fish-holding areas. Actual imaging range and image detail depend on installation, water conditions and the selected frequency.
ActiveTarget 2 and optional advanced sonar
The HDS PRO platform supports high-resolution ActiveTarget 2 real-time sonar for following fish and lure movement. ActiveTarget 2 hardware is not included in this Active Imaging HD package. Optional S3100 sonar expansion is necessary for supported additional advanced sonar applications, including SideScan FishReveal. Compatibility does not mean that a module or additional transducer ships in the box.
Navigation, cartography and vessel integration
Use GPS to create and manage waypoints, routes and trails, and navigate with compatible C-MAP mapping products. The manufacturer identifies a preloaded basemap for this ROW configuration; detailed local chart coverage, premium C-MAP maps and any external chart cards are separate unless a specific package explicitly includes them. HDS PRO can be expanded through supported Ethernet and NMEA 2000 systems and compatible boat electronics; verify required connectors, licences and optional modules before purchase.
Detailed technical specifications
| Model | Lowrance HDS PRO 12 |
|---|---|
| Manufacturer SKU | 000-15988-001 |
| Regional version | ROW / Rest of World |
| Display size | 12 inches |
| Resolution | 1280 × 800 |
| Display | SolarMAX HD touchscreen; pure-white LED backlight |
| Brightness | More than 1,200 nits |
| Viewing angles | 80° top/bottom and 80° left/right |
| Included transducer | Active Imaging HD 3-in-1 |
| Sonar modes | Lowrance CHIRP, SideScan, DownScan Imaging |
| Network Ethernet | 2 × 100 Mbit ports; supports compatible multi-display networks |
| NMEA 2000 | 1 × Micro-C port |
| Memory card | 2 × microSD slots, up to 32 GB per card according to manufacturer |
| Wireless | Integrated 802.11 b/g/n Wi-Fi |
| Bluetooth | Integrated Bluetooth 4.0 |
| Video input | Composite video input with optional adapter; no video output |
| Charts | Preloaded basemap; compatible optional C-MAP cartography |
What's in the box
The manufacturer confirms the Active Imaging HD 3-in-1 transducer in this exact SKU. The manufacturer's package details also list a PC-30-RS422 power cable, model-specific mounting bracket and suncover for selected sizes. Exact small accessories and mounting hardware should be verified against the latest packing list before purchase; additional sonar modules, ActiveTarget 2 accessories and detailed premium chart cards are not assumed included.
Installation guidance
Install the display using the designated mounting system, observe the installation manual's supply and fuse requirements and locate the transducer where it has clean water flow and minimal turbulence. Plan Ethernet and NMEA 2000 connections carefully if networking multiple displays or external equipment. For high-definition imaging and live-sonar expansions, check cable compatibility and the latest supported software version.
Frequently asked questions
Does this listing include a sonar transducer? Yes. The official SKU 000-15988-001 includes Active Imaging HD 3-in-1.
Does it include ActiveTarget 2 live sonar? No. That is a separate compatible sonar system requiring additional equipment.
Can I use SideScan FishReveal out of the box? No. Lowrance specifies an optional S3100 module and compatible transducer for that functionality.
Are detailed Baltic Sea charts included? The ROW product specification identifies a preloaded basemap, not confirmed detailed Baltic charts. Choose appropriate compatible mapping separately.
Official manufacturer specification and package details
Lowrance HDS PRO 12 — manufacturer specifications and in-the-box details for SKU 000-15988-001
